Nysan Fabric Specifications

SuperSol Fabrics



2.3                  Fabric Schedule



2.3.1.              Fabric: “Nysan SuperSol  100, 300, 1200, Black Out”



2.3.1.1.           Fabric weight                        11oz/yd²

2.3.1.2.           Fabric Thickness                  16 mil

2.3.1.3.           Breaking Strength                 warp 240daN/5cm weft 200daN/5cm

2.3.1.4.           Flame Resistance                 0.0 sec after flame

2.3.1.5.           Fuel contributed value           0

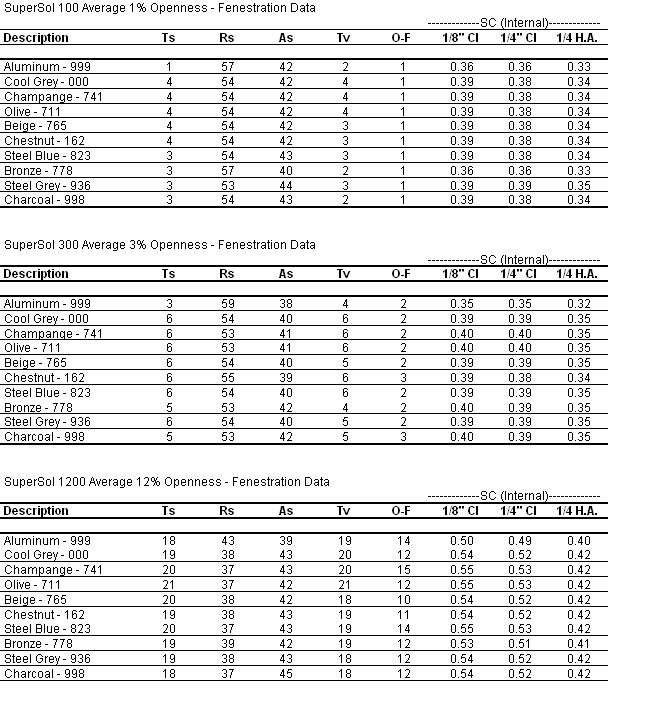

2.3.1.6.           Average Openness:              ±1%, ±3%, ±12%

2.3.1.8.           Colorfastness to light             Excellent

2.3.1.10.         Char Length (inches)             0.2

2.3.1.11.         Color                                       Standard Colors

2.3.1.12.         Composition                          Fabric made with PVC Free Trevira Polyester      yarns





2.3.2.              Fabric:

2.3.2.1.           Waterproof, washable, rot proof.

2.3.2.2.           Flame resistant in accordance with California Flame Test, Title 19 Public Safety, Section 1237.1 small scale test.

2.3.2.3.           Tested in accordance with ASHRAE Standard 74073, "Methods of Measuring Solar‑Optical Properties of Materials" and flame spread to NFPA 703: Small Scale Test for Curtains and Draperies 1989" and NFPA 701: "Large Scale Test for Single Strip Specimens." Toxicity: UPITT Fungal resistance: ASTM G21 Bacterial Resistance, ASTM G22



2.3.3.              Color to be chosen from standard range of colors.



End Of Section
